Interlock® - Magna-Lok® - Ultragrips® - Kliklock® Structural Blind Rivets


Interlock® - Magna-Lok® - Ultragrips® - Kliklock® Structural Blind Rivets


Other Types of Blind Rivets:

Open End Blind Rivets    Closed End Blind Rivets      Multi-grip Blind Rivets

2 Piece Mate Rivets         Bulbex /Tribex Blind Rivets   Bulb-tite Blind Rivets

Peel Type Blind Rivets     Avinox Blind Rivets    Interlock Structural Blind Rivets

Q Rivets Structural Blind Rivets





Product Specifications

3/16 Steel  Alum  Stainless
Shear 1300 600 1300
Tensile 1200 500 950
Pin Pushout 150 50 100
1/4 Steel  Alum  Stainless
Shear 2500 1300 2350
Tensile 2200 890 1800
Pin Pushout 300 100 200





All Steel Product Data



Steel Rivet / Steel Mandrel Product Specifications



Head

Style

Rivet

Dia.

Nom.

JAY-CEE

Part

Number

Grip

Range

(Inches)

Hole Size

Drill No.

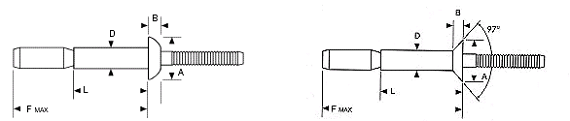

Dimensions (Inches)

D

B

Max.

A

L

Max.

F

Dome

3/16"

PR64SSPI

.062-.270

.194-.204

.185-.188

0.088

.353-.373

0.415

0.675

PR67SSPIE

.062-.437

#8

0.572

0.95

1/4"

PR86SSPI

.080-.375

.261-.272

.253-.257

0.116

.480-.500

0.56

0.97

PR810SSPIE

.080-.625

H

0.81

1.405

Counter-

sunk

3/16"

PR66SSCI

.125-.331

.194-.204

.185-.188

0.072

.321-.338

0.486

0.8

PR68SSCI

.275-.500

#8

Ref.

0.606

1.032

1/4"

PR87SSCI

.125-.437

.261-.272

.253-.257

0.079

.410-.422

0.66

1.2

PR812SSCI

.417-.725

H

Ref.

Note: This table reflects typical results in test parameters.



All Aluminum Product Data



Aluminum Rivet / Aluminum Mandrel Product Specifications



Head

Style

Rivet

Dia.

Nom.

JAY-CEE

Part

Number

Grip

Range

(Inches)

Hole Size

Drill No.

Dimensions (Inches)

D

B

Max.

A

L

Max.

F

Dome

3/16"

.062-.270

.194-.204

.185-.188

0.088

.353-.373

0.415

0.675

.062-.437

#8

0.572

0.95

1/4"

.080-.375

.261-.272

.253-.257

0.116

.480-.500

0.56

0.97

.080-.625

H

0.81

1.405

Counter-sunk

3/16"

.125-.331

.194-.204

.185-.188

0.072

.321-.338

0.486

0.8

.275-.500

#8

Ref.

0.606

1.032

1/4"

.160-.437

.261-.272

.253-.257

0.079

.410-.422

0.66

1.2

.417-.725

H

Ref.

Note: This table reflects typical results in test parameters.



All Stainless Steel Product Data



Stainless Steel Rivet / Stainless Steel Mandrel Product Specifications



Head

Style

Rivet

Dia.

Nom.

JAY-CEE

Part

Number

Grip

Range

(Inches)

Hole Size

Drill No.

Dimensions (Inches)

D

B

Max.

A

L

Max.

F

Dome

3/16"

.062-.270

.194-.204

.185-.188

0.088

.353-.373

0.415

0.755

.062-.437

#8

0.572

1.035

1/4"

.080-.375

.261-.272

.253-.257

0.116

.480-.500

0.56

1.025

.080-.625

H

0.785

1.355

Counter-sunk

3/16"

PR66FFCI

.125-.331

.194-.204

.185-.188

0.072

.321-.338

0.486

0.8

PR68FFCI

.275-.500

#8

Ref.

0.606

1.032

1/4"

.125-.437

.261-.272

.253-.257

0.079

.410-.422

0.66

1.2

H

Ref.

Note: This table reflects typical results in test parameters.

Prices quoted below are per box of 100 pcs. Select options for further price breaks.




interlock rivets PR64SSPI STEEL/STEEL INTERLOCK RIVETS

$26.26


interlock rivets PR67SSPIE ALL STEEL INTERLOCK EXTENDED GRIP RIVETS

$26.26



interlock rivets PR86SSPI STEEL/STEEL INTERLOCK RIVETS

$31.86


interlock rivets PR810SSPIE STEEL/STEEL INTERLOCK EXTEND GRIP RIVETS

$33.00



interlock rivets PR68SSCI STEEL/STEEL INTERLOCK C'SUNK HEAD RIVETS

$31.34


interlock rivets PR812SSCI STEEL/STEEL INTERLOCK C'SUNK HEAD RIVETS

$81.80



interlock rivets PR64AAPI ALL ALUMINUM INTERLOCK RIVETS

$18.04


interlock rivets PR67AAPIE ALL ALUMINUM INTERLOCK EXTENDED GRIP RIVETS

$27.25



interlock rivets PR86AAPI ALL ALUMINUM INTERLOCK RIVETS

$33.67


interlock rivets PR810AAPIE ALL ALUMINUM INTERLOCK EXTENDED GRIP RIVETS

$35.67



interlock rivets PR66AACI ALL ALUMINUM C'SUNK HEAD INTERLOCK

$32.26


interlock rivets PR68AACI ALL ALUMINUM C'SUNK HEAD INTERLOCK RIVETS

$32.79



interlock rivets PR812AACI ALL ALUMINUM C'SUNK HEAD INTERLOCK RIVETS

$65.00


interlock rivets PR64FFPI ALL STAINLESS STEEL INTERLOCK RIVETS

$51.30



interlock rivets PR67FFPIE ALL STAINLESS STEEL INTERLOCK EXTENDED GRIP RIVETS

$80.41


interlock rivets PR86FFPI ALL STAINLESS INTERLOCK RIVETS

$91.18



interlock rivets PR810FFPIE ALL STAINLESS INTERLOCK EXTENDED GRIP RIVETS

$110.22


interlock rivets PR87SSCI STEEL/STEEL INTERLOCK C'SUNK HEAD RIVETS

$56.00



interlock rivets PR66SSCI STEEL/STEEL INTERLOCK C'SUNK HEAD RIVETS

$27.13


interlock rivets PR87FFCI ALL STAINLESS INTERLOCK RIVETS

$110.00



interlock rivets PR88AACI ALL ALUMINUM INTERLOCK RIVETS C'SUNK

$42.32
